Brand Name: | SHENZHEN REFINED |
Model Number: | RCO-300W |
Packaging Details: | 10X6X6 cm |
Payment Terms: | T / T , L / C , PayPal , Western Union |

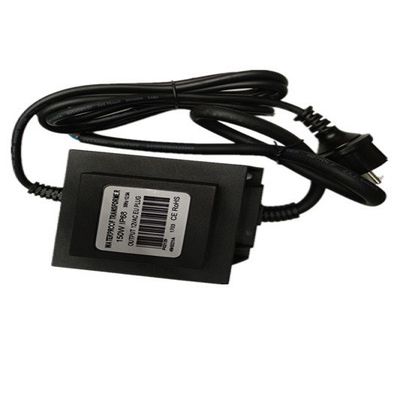

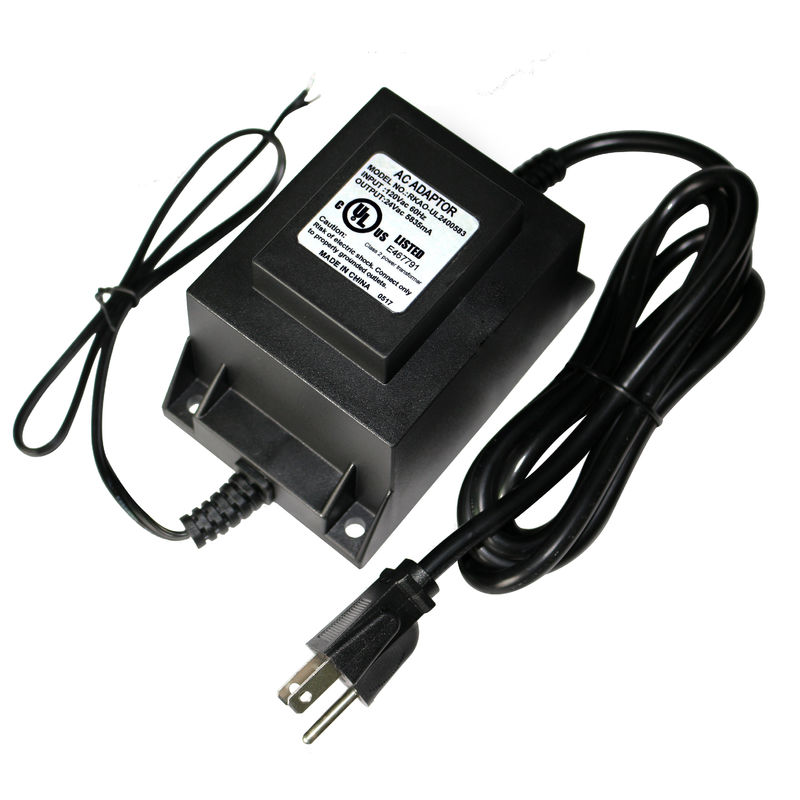

300W AC 12V 24V LED Power Supply Waterproof Power Supply Adapter Transformer for LED Swimming Pool Light
Model |
Power |
Input Voltage(V) |
Output Voltage(V)/A |
RCO-10W |
10W |
110-120VAC |
12VAC 0.83A/ 24VAC 0.42A |
RCO-15W |
15W |
12VAC 1.25A/ 24VAC 0.62A |
|
RCO-20W |
20W |
12VAC 1.66A/ 24VAC 0.83A |
|
RCO-25W |
25W |
12VAC 2A/ 24VAC 1A |
|
RCO-30W |
30W |
12VAC 2.5A/ 24VAC 1.25A |
|
RCO-40W |
40W |
12VAC 3.33A/ 24VAC 1.66A |
|
RCO-45W |
45W |
12VAC 3.75A/ 24VAC 1.87A |
|
RCO-50W |
50W |
12VAC 4.16A/ 24VAC 2.08A |
|
RCO-60W |
60W |
12VAC 5A/ 24VAC 2.5A |
|
RCO-70W |
70W |
12VAC 5.83A/ 24VAC 2.91A |
|
RCO-80W |
80W |
12VAC 6.66A/ 24VAC 3.33A |
|
RCO-85W |
85W |
12VAC 7A/ 24VAC 3.5A |
|
RCO-100W |
100W |
12VAC 8.3A/ 24VAC 4.16A |
|
RCO-120W |
120W |
12VAC 10A/ 24VAC 5A |
|
RCO-150W |
150W |
12VAC 12.5A/ 24VAC 6.25A |
|
RCO-200W |
200W |
12VAC 16.66A/ 24VAC 8.33A |
|
RCO-250W |
250W |
12VAC 20.83A/ 24VAC 10.42A |
|
RCO-300W |
300W |
12VAC 25A/ 24VAC 12.5A |
|
RCO-350W |
350W |
12VAC 29.16A/ 24VAC 14.58A |
1). WORKING AND SAFETY PROTEETION
Electrostatic Shield Magnetic Shield
Temperature Protection Over Current Protection
2). INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown
Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)
3). TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.
4). MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A
5). MAIN PARAMETERS:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:10VA-350VA
6) , Waterproof toroidal Transformer's materials:
* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP
