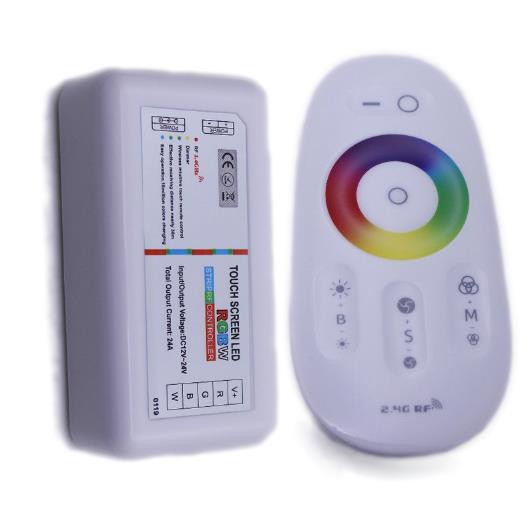

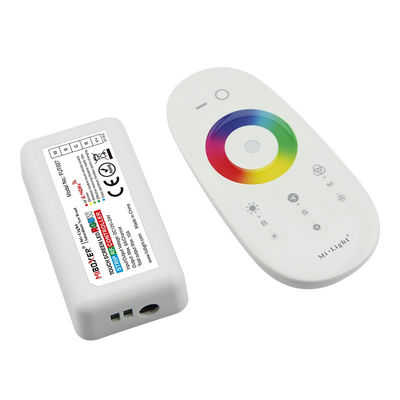

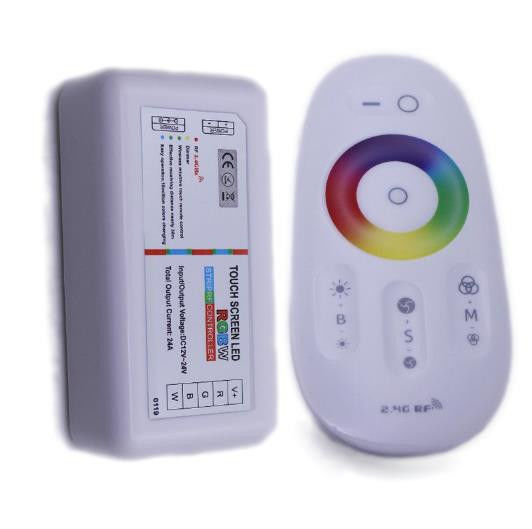

12V 2.4G Stable Wireless RGBW LED Controller With Touch Screen

Place of Origin China
Brand Name SHENZHEN REFINED
Certification CE,RoHs
Model Number RF-FUT27
Payment Terms T / T , L / C , PayPal , Western Union
Product Details
Model Number RF-FUT27 Input Voltage DC12V-24V
Size L85×W45×H22mm Parts Controller + Remote Control
Input Line DC Line Signal Mode 2.4G RF
High Light

12V Wireless RGBW LED Controller

,

2.4G Wireless RGBW LED Controller

,

Stable RGBW Wireless Controller

Leave a Message
Product Description

12V 2.4G Wireless Touch Screen RGBW Controller


Product Description
12V 2.4G Stable Wireless RGBW LED Controller With Touch Screen 012V 2.4G Stable Wireless RGBW LED Controller With Touch Screen 1
Programming


Code matching :
For a new kit ( remote& controller), the remote can work only when it is programmed to the controller. Please follow the below instructions: Correctly connect between power supply, LED controller and LED load. Switch off the power, then switch on again, and press key 5 once (within 3 seconds) the moment you see the light is on.The LED light blinks twice slowly when it is done.



Code clearing :
The code can be cleared as needed.
The kit (remote and controller) will stay in the original state after code clearing. It can work when code matching is done.
Please follow the below instructions:
Correctly connect between power supply, LED controller and LED load.
Switch off the power, then switch on again, and long press key 5(within 3 seconds) the moment you see the light is on.The LED light blinks nine times swiftly when it is done.


Attention:
1.The regular product for sale is a kit (remote and controller).
The user can re-programme freely as needed. One remote can control countless controllers, but one controller can only be controlLED by four remotes (Max).
2.Please check the battery installation and controller(totally discharge the power), when you programme after switching off and switching on.

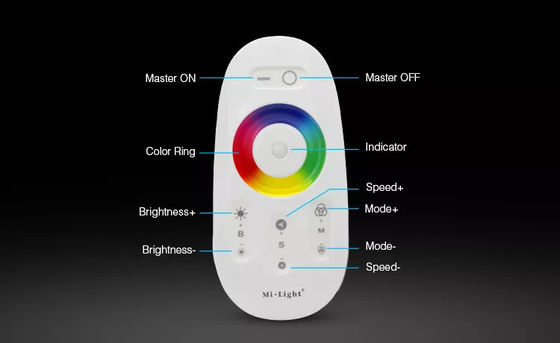

The remote looks fashionable and elegant , with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use .

The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.
