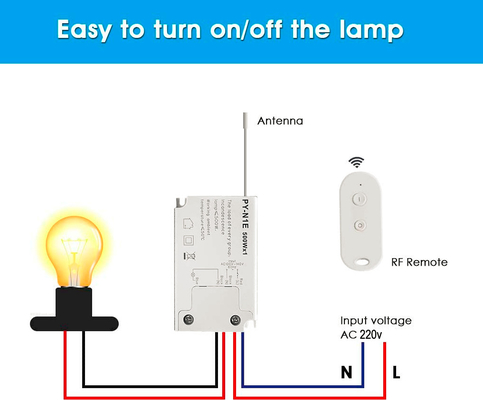

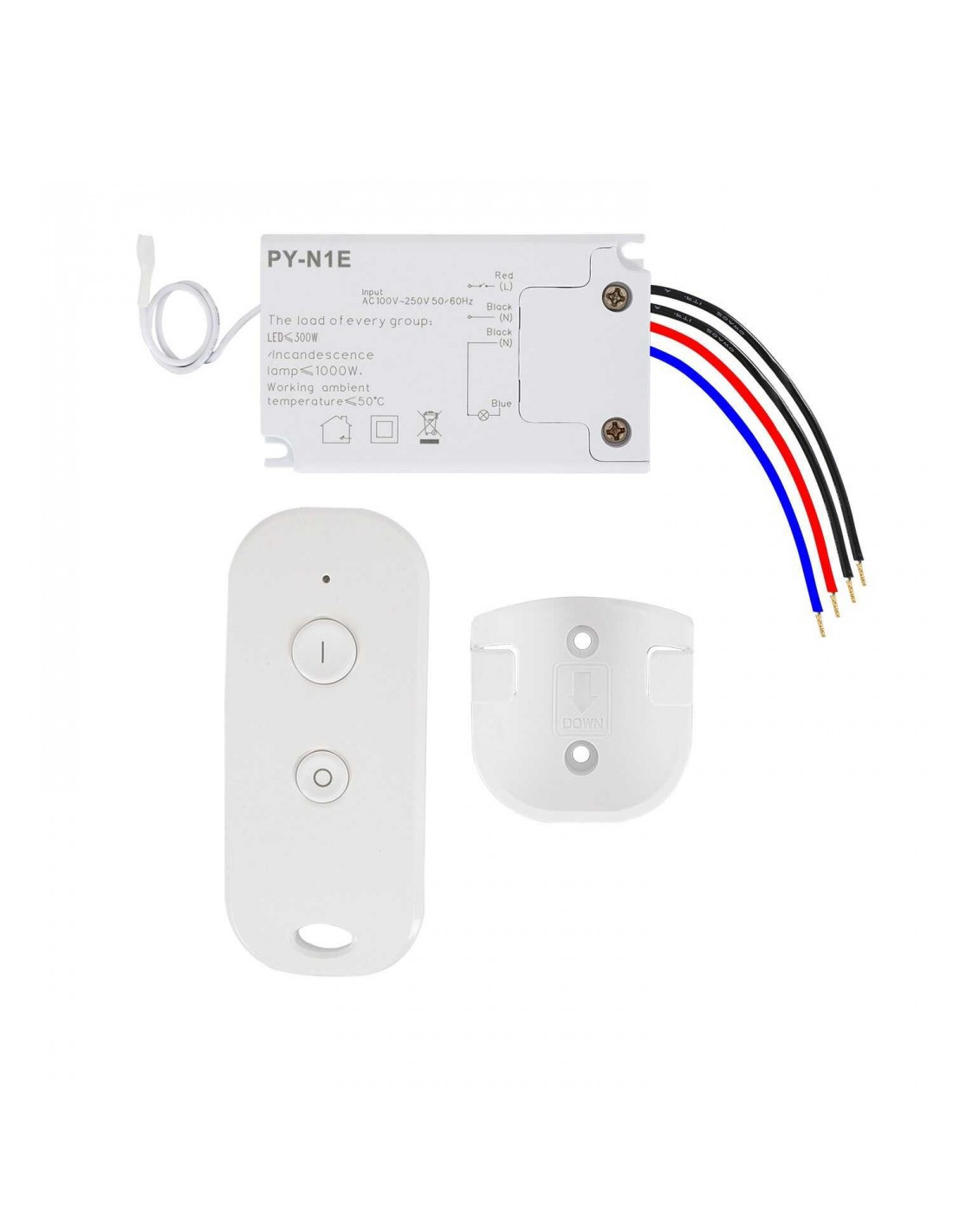

1,At the Input ,The red (L) is the live wire, the black (N) is the neutral wire; At the output ,the black (N1) is the neutral wire, and the blue (L1) is the control light wire
2,Load requirements for each channel: incandescent lamp≤1000W; H tube≤280W, number≤5; energy-saving lamp≤200W, number≤6; LED≤300W, number≤6
3,Operating voltage range: 187-253VAC 50HZ
5,The transmitter working enviroment:60℃-10℃
6,The transmitter working voltage range :2.5-3.2V (the battery model: LR03 AAA1.5VX2)
1. If the same naturel remote control products emit radio waves at the same time, it will cause mutual interference and affect the
receiving effect. If the remote control function is excluded, the normal function will be recovered. (Infrared remote control is not
2. Please remove the transmitter's battery when it is not in use for a long time.
3. Please do follow the light source parameters requirements indicated on the label when do the installation, otherwise it will
directly affect the lifespan or cause the fail in function immediately.
4. The antenna can't be connected to any other electrial wires
